QCT HN-3015 Fiber Laser Cutting Machine (1000W/3300W)

  • High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
  • The laser cutting head does not come into contact with the surface of the material and does not scratch the work piece.
  • The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the work piece is very small, and there is no mechanical deformation.
  • It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
  • Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.

The Body Of Machine

The body of machine is weldwd by the square tube. The advantage of this body is that body is stronger, and the welding area is lee than that welded by plate.

The Crossbeam Of Machine

The crossbeam is casting by aluminum, the stability is better.

Max and Raycus laser source, laser source is the most important of fiber laser cutting machine.The cutting thickness is depended on the fiber laser source.

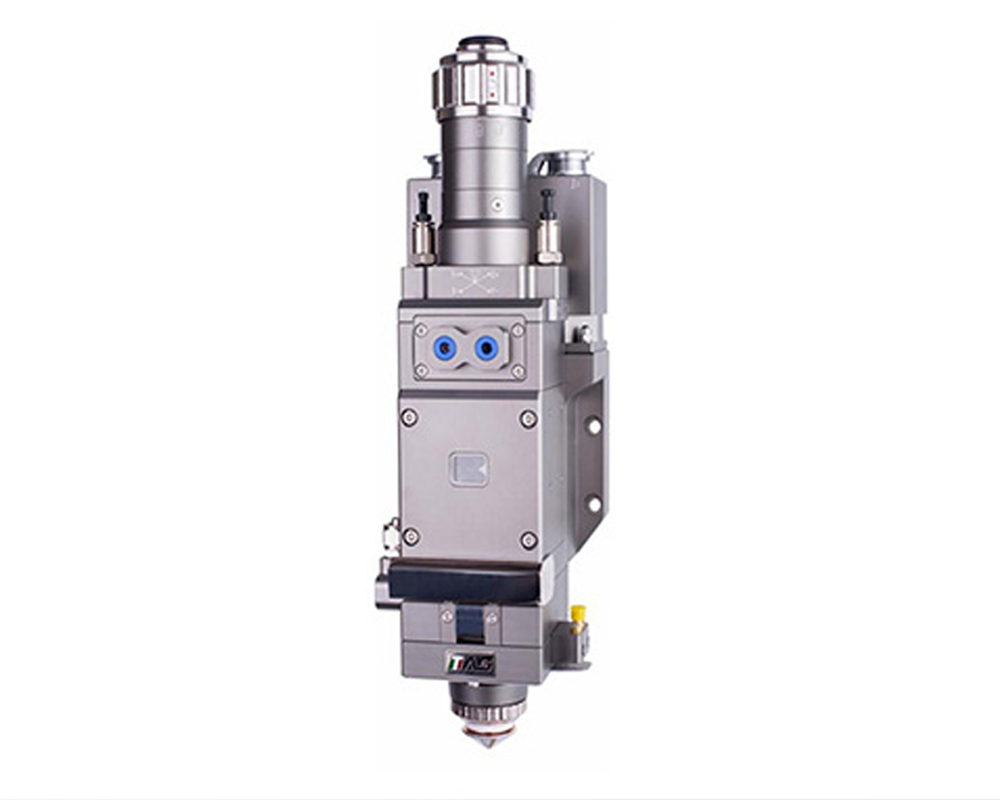

TAG laser cutting head is made in italy.

Parameters

No. Model Name Quantity Remarks
1 HN-3015 Medium fiber power (3000*1500) 1 set Jinan UpBull
2 Laser source 1000W-3300W 1 set Raycus/IPG/Max
3 Water Chiller Special water chiller for fiber laser generator 1 set standard
4 Laser head High accuracy professional fiber laser head 1 set TAG Italy
5 Control system Cypcut 1 set Cypcut
6 Driving system Japan High speed Yaskawa servo motor 4 sets Japanese Yaskawa servo motor
7 Reduction gear French Motovario/ Japan Shimpho 3 set French Motovario
8 Electric components Schneider France 1 set Omron，Scheider
9 Guide rail Taiwan Hiwin 1 set Taiwan ABBA
10 Rack Taiwan YYC/Apex 1 set Taiwan YYC
11 Proportional valve Japan SMC 1 set Japanese SMC

Application

1000W/3300W Fiber laser Cutting Machine meets the parts processing requirements of most industries, working accuracy is stable. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.

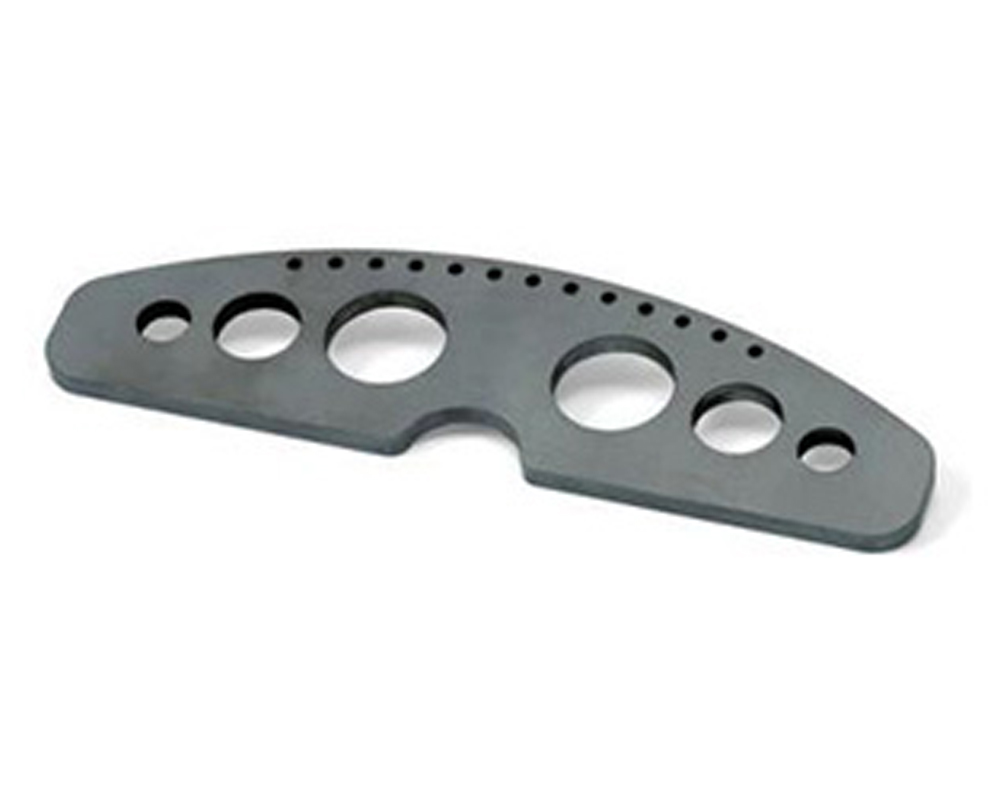

Cutting Samples
