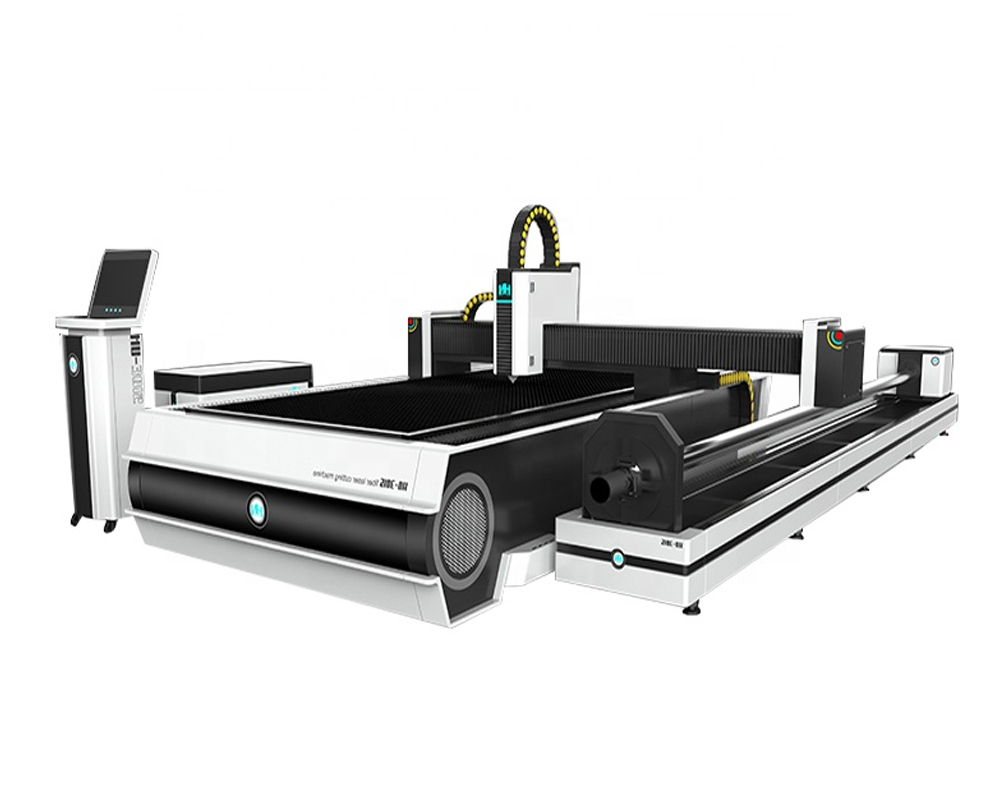

Tube Plate Integrated Optical Fiber Laser Cutting Machine

  • This model integrates square tube,circular tube,oblate tube and plate cutting in one,with multifunction and high practicality.
  • Gantry structure and dual drive,Germany imported rack & pinion drive system.Excellent cutting performance and stability.
  • Self-centering jig system ensure stable process of conveying pipes,so that it can ensure high accuracy and high quality of cnc gas cutting machine in Ahmedabad products.
  • Fiber laser tube cutting machine with high accuracy of machining dimension,can take the place of traditional processing equipment,such as sawing and punching.
  • Saddle-shaped pipe type support beam is with high precision calibration,no deformation during 6mm pipe cutting.

Parameters

No. Model Name Quantity Remarks
1 ACTL HN-3015CT Medium tube plate integrated fiber power laser cutting machine 1 set -
2 1000-3300W Laser generator 1 set Raycus/IPG/Max.
3 Water chiller Special water chiller for fiber laser generator 1 set Hanli/Tongfei
4 Laser head High accuracy professional fiber laser head 1 set ItalyTAG (Acemit)/ Raytools/Precitec
5 Control system Cypcut 1 set Cypcut
6 Z axis Japan High speed Yaskawa servo motor 1 set 750W Yaskawa servo motor
Y axis Japan High speed Yaskawa servo motor 2 sets 1800W Yaskawa servo motor
X axis Japan High speed Yaskawa servo motor 1 sets 1000W Yaskawa servo motor
W axis Japan High speed Yaskawa servo motor 2 sets 1000W Yaskawa servo motor
L axis Japan High speed Yaskawa servo motor 1 sets 1000W Yaskawa servo motor
7 MVB-090-007-P1 French Motovario/ Japan Shimpho 6 set French Motovario/SHIMPHO
8 Electric components Schneider France 1 set Omron，Schneider
9 HGH30 Taiwan Hiwin 1 set TaiwanABBA/HIWIN
10 CHTGH-020-10 Taiwan YYC/Apex 1 set TaiwanAPEX/YYC
11 Proportional valve Japan SMC 1 set Japanese SMC
12 HN-3M-160mm The length of rotary:3000mm
The max diameter of rotary:160mm 		1 sets -
13 Spare parts Lens
Cutting nozzle 		5 pieces -

Application

Fiber laser tube cutting machine meets the parts processing requirements of most industries, working accuracy is stable. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.

Cutting Samples

Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships,
